- Precision RF Performance
Engineered for the 5.4–5.9GHz C-band, this rotary joint delivers industry-leading electrical specifications. The ultra-low VSWR (≤1.2) minimizes signal reflections, while the low insertion loss (≤0.2dB) preserves signal strength and integrity—critical for maintaining system performance in high-power radar and communication links.
- High Power Handling
Capable of 1.1 megawatt peak power and 4 kilowatt average power, it supports demanding high-power RF environments. This robust power capacity ensures stable operation under heavy load conditions without performance degradation.
- Long Mechanical Life
Designed for continuous duty, it provides an extended 6 million revolutions operating life. The precision bearing system and rugged construction maintain consistent performance over millions of rotations, reducing maintenance requirements and downtime.
- Reliable Environmental Protection
With IP65 ingress protection, it resists dust and water intrusion. The 0℃ to +55℃ operating temperature range ensures reliable performance in diverse industrial and outdoor settings.
- Optimal Mechanical Specifications
The 10 RPM maximum speed rating balances rotational performance with signal stability. The single-channel WR187/G waveguide design maintains impedance matching throughout rotation, preserving signal quality.
RF High-Frequency Joint

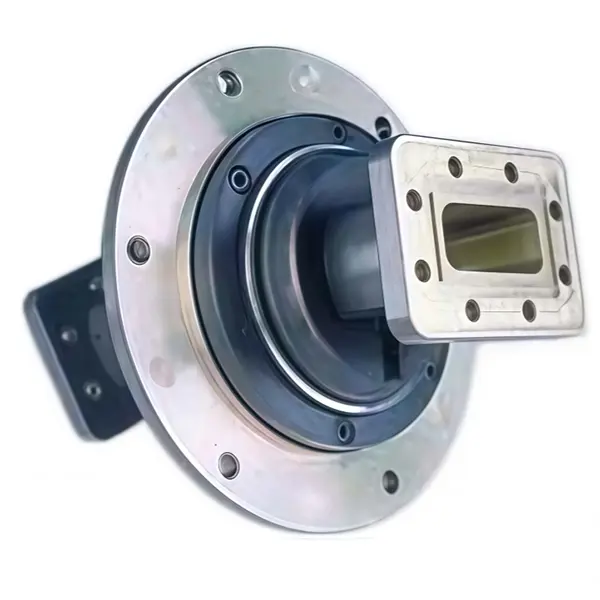

HS-1RJ-006 WR187/G RF Rotary Joint, 5.4-5.9GHz, 1.1MW Peak, 4KW Avg, IP65, 6M Revolutions
$678.00
+ Free ShippingThis single-channel WR187/G waveguide RF rotary joint operates at 5.4–5.9GHz, engineered for high-power RF signal transmission in rotating systems. It handles 1.1MW peak power and 4kW average power with exceptional electrical performance: VSWR ≤1.2 and insertion loss ≤0.2dB, ensuring minimal signal distortion. Built for durability, it offers 6×10⁶ revolutions lifespan, 10RPM max speed, IP65 protection, and 0℃ to +55℃ operating temperature. Ideal for radar, satellite communications, and industrial high-power RF systems requiring reliable, long-life rotary signal connectivity.
High-Performance WR187 Waveguide Rotary Joint for 5.4–5.9GHz High-Power Applications
